New Feature – How to take Elements Screenshot in Selenium 4

New Feature – How to take Elements Screenshot in Selenium 4

Welcome to 4th article in Selenium 4 new features series.

What you will Learn:

  • New Feature – How to take Elements Screenshot (method 1) in Sel 4
  • New Feature – Elements Screenshot (method 2 using typecasting) in Sel 4
  • Code snippets

New Feature – How to take Elements Screenshot (method 1) in Sel 4

Go to the site
https://www.way2automation.com/lifetime-membership-club/

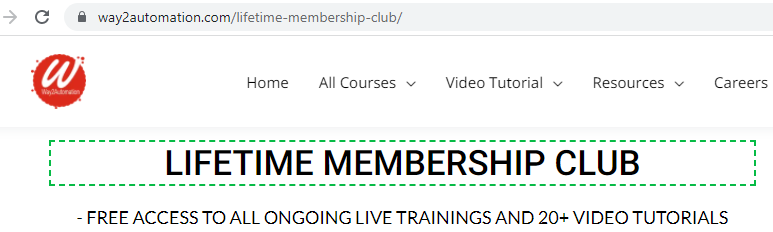

Our use case is, we have to take a screenshot of a single element on this webpage. Let’s suppose we have to capture the element LIFETIME MEMBERSHIP CLUB as shown below

Elements Screenshot in Selenium 4

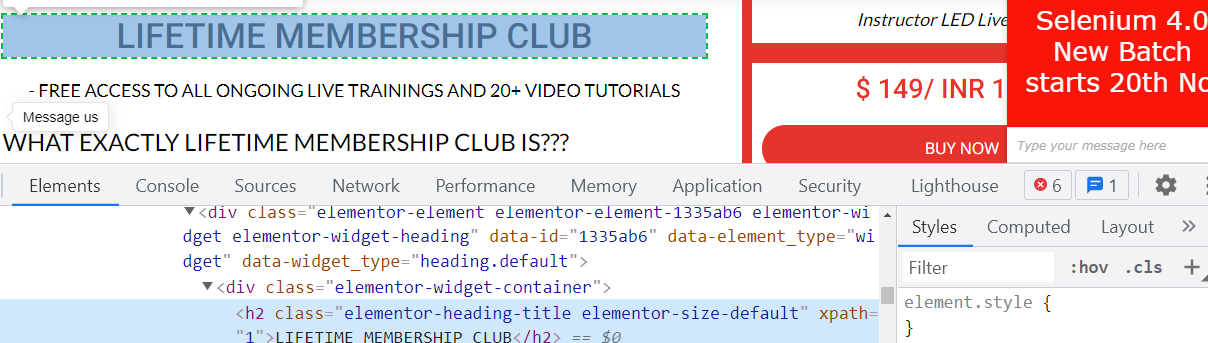

On inspecting this element, we find that it is uniquely identified by a class and hence we can use .cssSelector method

Elements Screenshot in Selenium 4

Hence we can write:

WebElement header1 = driver.findElement(By.cssSelector(“.elementor-heading-title.elementor-size-default”));

Next, we see a method getScreenshotAs() that we can apply to this element header1

Elements Screenshot in Selenium 4

Hence we can write:

header1.getScreenshotAs(OutputType.FILE);

As seen above, this method captures the screenshot and stores it in a specified file location.

So we can write as below:

File srcFile =   header1.getScreenshotAs(OutputType.FILE);

Next, we will copy this file to a new file location using ‘copyFile’ utility present in FileUtils class as shown below:

FileUtils.copyFile(srcFile, new File(“./target/screenshots/image1.png”));

So our complete script looks like this:

Elements Screenshot in Selenium 4

Let us run this script.

Notice below, the image1.png gets created and gets stored to a file location under ‘./target/screenshots’ folder at runtime. You have to refresh the project to see this image

Elements Screenshot in Selenium 4

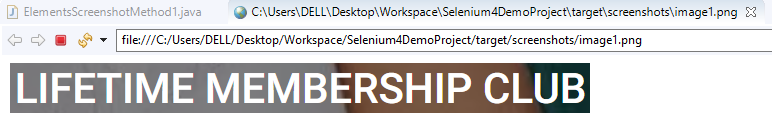

Double click image1.png, we would see the element screenshot as shown below

Elements Screenshot in Selenium 4

So this is how we can easily capture an element screenshot from the webpage in Selenium4.

New Feature – Elements Screenshot (method 2) in Sel 4

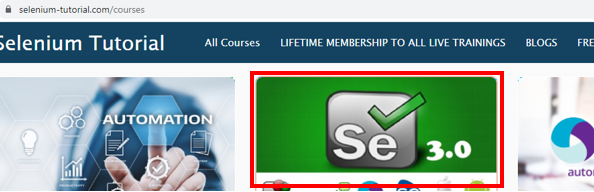

Let us see another way to capture an element on webpage. Go to the website https://www.selenium-tutorial.com/courses

Elements Screenshot in Selenium 4

The use case, we want to capture the 2nd image shown above.

Inspect this image using chropath. The xpath //img[@class=’course-box-image’] is returning us 31 matches

Elements Screenshot in Selenium 4

Since we are interested in 2nd image, we can build our xpath as shown below:
(//img[@class=’course-box-image’])[2]

Notice below that we are now getting only 1 element match

Elements Screenshot in Selenium 4

So we can write:

WebElement elem2 = driver.findElement(By.xpath(“(//img[@class=’course-box-image’])[2]”));

Next, we will typecast the desired element (here elem2) into TakesScreenshot interface as shown below:

TakesScreenshot scrShot = ((TakesScreenshot)elem2);

Next, like we did in first method, we will apply the getScreenshotAs method

File srcFile =   scrShot.getScreenshotAs(OutputType.FILE);

Next, like we did in first method, we will copy this file to a new file location

FileUtils.copyFile(srcFile, new File(“./target/screenshots/elem2.png”));

So our script looks like below:

Elements Screenshot in Selenium 4

Save and run the script. During runtime, you would see selenium taking snapshot for the element as shown below

Elements Screenshot in Selenium 4

Refresh folder to see elem2.png and click it

Elements Screenshot in Selenium 4

So this is the second way to capture an element using typecasting. Try to capture the 3rd image on the website.

Code snippet (method 1)

package sel4scripts;

import java.io.File;

import java.io.IOException;

import org.apache.commons.io.FileUtils;

import org.openqa.selenium.By;

import org.openqa.selenium.OutputType;

import org.openqa.selenium.WebDriver;

import org.openqa.selenium.WebElement;

import org.openqa.selenium.chrome.ChromeDriver;

import io.github.bonigarcia.wdm.WebDriverManager;

public class ElementsScreenshotMethod1 {

public static void main(String[] args) throws InterruptedException, IOException {

WebDriverManager.chromedriver().setup();

WebDriver driver = new ChromeDriver();

driver.get(“https://www.way2automation.com/lifetime-membership-club/”);

Thread.sleep(2000);

WebElement header1 = driver.findElement(By.cssSelector(“.elementor-heading-title.elementor-size-default”));

File srcFile =   header1.getScreenshotAs(OutputType.FILE);

FileUtils.copyFile(srcFile, new File(“./target/screenshots/image1.png”));

}

}

Also Check: Selenium Training Online

Code snippet (method 2)

package sel4scripts;

import java.io.File;

import java.io.IOException;

import org.apache.commons.io.FileUtils;

import org.openqa.selenium.By;

import org.openqa.selenium.OutputType;

import org.openqa.selenium.TakesScreenshot;

import org.openqa.selenium.WebDriver;

import org.openqa.selenium.WebElement;

import org.openqa.selenium.chrome.ChromeDriver;

import io.github.bonigarcia.wdm.WebDriverManager;

public class ElementsScreenshotMethod2 {

public static void main(String[] args) throws InterruptedException, IOException {

WebDriverManager.chromedriver().setup();

WebDriver driver = new ChromeDriver();

driver.get(“https://www.selenium-tutorial.com/courses”);

Thread.sleep(2000);

WebElement elem2 = driver.findElement(By.xpath(“(//img[@class=’course-box-image’])[2]”));

TakesScreenshot scrShot = ((TakesScreenshot)elem2);

File srcFile =   scrShot.getScreenshotAs(OutputType.FILE);

FileUtils.copyFile(srcFile, new File(“./target/screenshots/elem2.png”));

}

}

Thank you for reading!
